معلومات تفصيلية |
|||
| قدرة التلدين: | 150 جم/ثانية | ارتفاع القالب: | 160 - 300 ملم |
|---|---|---|---|
| رقم القاذف: | 2 | القاذف السكتة الدماغية: | 60 ملم |
| قوة القاذف: | 1.8 kN | حجم اللقطة النظرية: | 170 سم مكعب |
| معدل الحقن: | 113 جرام/ثانية | وزن الحقن: | 141 جرام |
| سرعة المسمار: | 0 - 215 دورة في الدقيقة | قطر المسمار: | 40 ملم |
| المسمار L/D نسبة: | 22 | المسافة بين قضبان التعادل: | 510 ملم |
| وزن: | 2400 كجم | افتح السكتة الدماغية: | 540 ملم |
| قوة: | 12.8 كيلو واط | ||
| إبراز: | 55T Clamping Force Rotary Table Plastic Injection Molding Machine,High-accuracy Rotary Table Plastic Injection Molding Machine,1 Year Warranty Rotary Table Plastic Injection Molding Machine,High-accuracy Rotary Table Plastic Injection Molding Machine,1 Year Warranty Rotary Table Plastic Injection Molding Machine |
||
منتوج وصف

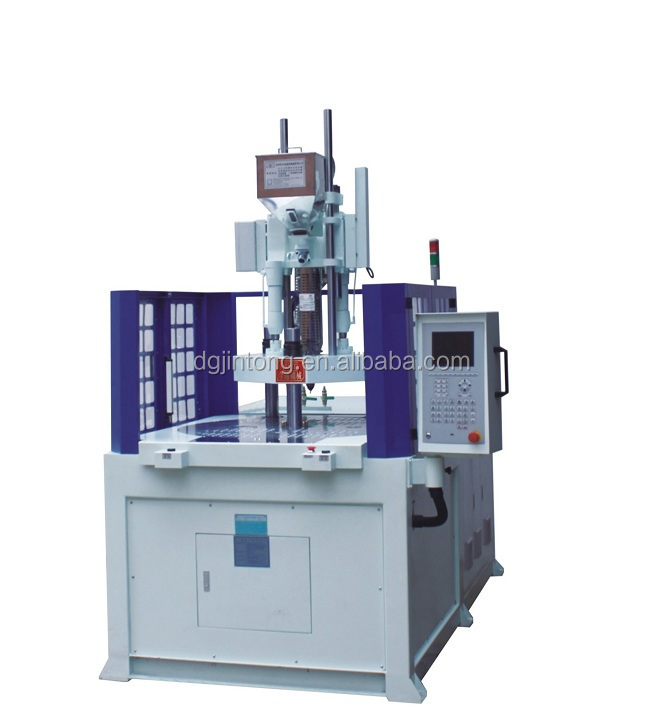

Best Seller Rotary Table Plastic Injection Molding Machine 55T
Product Description
Best seller rotary table plastic injection molding machine JTT-550R
Clamping Force: 55T
Injection Weight: 80-141g
- Vertical clamping, vertical injection
- Easy to set torque, speed, deceleration distance and stand number segmentation
- Computer program control rotary table direction: forward-rotating, reverse-rotating, forward and reverse alternative rotating
- Optional energy-saving motor
Main Features
- Vertical clamping, vertical injection
- Clamping force, injection weight and shot speed can be changed according to actual demand
- 2 stations, 3 stations, multi-station (one up die, two or four down die), easy for operating insert parts, improves productivity
Certifications
Detailed Images
Product Advantages
Energy-saving:
Save 30% energy compared to similar products by using SIFU pump system
High efficiency:
SIFU motor has max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating:
Save 55% cooling water quantity at least compared to similar products
Low noise:
Optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision:
Use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
Service Advantage
17 years of customer service experience and summarizing customer feedback, Jintong has developed a systematic and standardized service process, and also established a 24-hour response mechanism to ensure timely resolution of customer problems and provide perfect service as soon as possible.

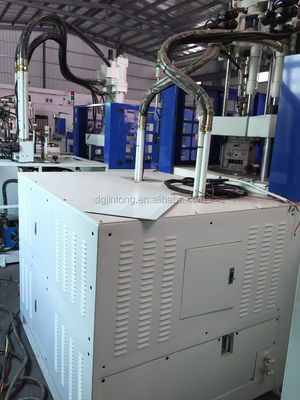

Packing & Delivery
بطاقة:
آلة صناعة القالب المدمجة,آلة صناعة البلاستيك العمودية,آلة صناعة البلاستيك العمودية
55T Clamping Force Rotary Table Plastic Injection Molding Machine,High-accuracy Rotary Table Plastic Injection Molding Machine,1 Year Warranty Rotary Table Plastic Injection Molding Machine
Vertical Plastic Injection Moulding Machine
تريد أن تعرف المزيد من التفاصيل حول هذا المنتج
