Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity

Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity

تفاصيل المنتج:

مكان المنشأ: قوانغدونغ ، الصين
اسم العلامة التجارية: JINTONG
رقم الموديل: JTT-1200R

شروط الدفع والشحن:

الحد الأدنى لكمية: قطعة واحدة
الأسعار: $32,000-40,000 / piece
افضل سعر اتصل

معلومات تفصيلية
تتم معالجتها البلاستيكية: PP ، ABS قدرة التلدين: 250 جم/ثانية
ارتفاع القالب: 150 - 520 ملم رقم القاذف: 2
القاذف السكتة الدماغية: 75 ملم قوة القاذف: 27 كيلو نيوتن
حجم الرصاص: 410 سم مكعب معدل الحقن: 202 جرام/ثانية
وزن الحقن: 369 جرام سرعة المسمار: 1 - 220 دورة في الدقيقة
قطر المسمار: 50 ملم المسمار L/D: 25
مسافة شريط التعادل: 620 ملم وزن الآلة: 5500 كجم
قوة: 24.5 كيلو واط
إبراز:

2 Stations Vertical Injection Molding Machine,3 Stations Rotary Table Injection Molding Machine,250g/s Plasticizing Capacity Injection Molding Machine

,

3 Stations Rotary Table Injection Molding Machine

,

250g/s Plasticizing Capacity Injection Molding Machine

منتوج وصف

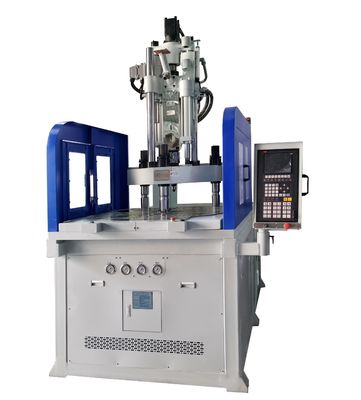

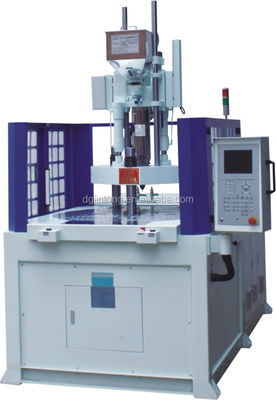

Rotary Table Vertical Plastic Injection Molding Machine 120T
Rotary table vertical injection molding machine JTT-1200R
Clamping Force 120T
Injection Weight 237-369g

Vertical clamping, vertical injection. Easy to set torque, speed, deceleration distance and stand number segmentation. Computer program control for rotary table direction including forward-rotating, reverse-rotating, and forward/reverse alternative rotating. Optional energy-saving motor available.

Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 0
Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 1
Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 2
Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 3
Main Features
  • Vertical clamping and vertical injection design
  • Adjustable clamping force, injection weight and shot speed to meet production requirements
  • Available in 2-station, 3-station or multi-station configurations (one up die, two or four down die)
  • Optimized for operating insert parts and improving productivity
Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 4
Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 5
Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 6
Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 7
Product Advantages
  • Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
  • High efficiency: SIFU motor with max speed 2200/min increases oil pump output and improves productivity by over 15%
  • Low heating: Reduces cooling water quantity by at least 55% compared to similar models
  • Low noise: Optimized motor operation with imported bearing and oil pump reduces working noise by 15-20db
  • Precision: Fully closed-cycle control with pressure sensor and motor rotary encoder improves product consistency
Service Advantage

With 17 years of customer service experience, we've developed a systematic and standardized service process. Our 24-hour response mechanism ensures timely resolution of customer issues and delivery of excellent service.

Packing & Delivery
Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 8
Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 9
Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 10
Rotary Table Vertical Injection Molding Machine with 2 Stations 3 Stations and 250g/s Plasticizing Capacity 11
